Swoop® Portable MR Imaging® System

Sequences

We invite you to learn more about Swoop system T1, T2, FLAIR, and DWI sequences.

T1 (Standard) / T1 (Gray/White)

Resolution: 1.6 × 1.6 × 5 mm

Acquisition type; orientations: 3D; axial, sagittal, coronal

Kspace trajectory: Cartesian, weighted coverage

Image reconstruction: Kalman filter noise suppression, line noise suppression, T2 decay and apodization filter, advanced gridding, phase-sensitive parallel imaging reconstruction, B0 drift navigator

Post-processing: Geometric distortion correction, intensity correction, advanced denoising

Additional info (T1 Gray/White): Similar to T1-weighted gradient-echo-based imaging sequences on higher field MRIs. Optimized for visualizing extra-axial pathology.

Additional info (T1 Standard): Similar to T1-weighted spin-echo-based imaging sequences on higher field MRIs. Optimized for visualizing intraparenchymal pathology.

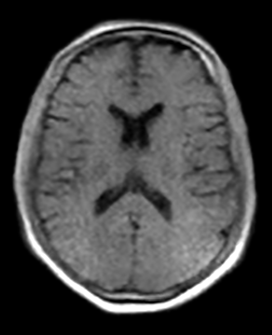

T1 (Standard)

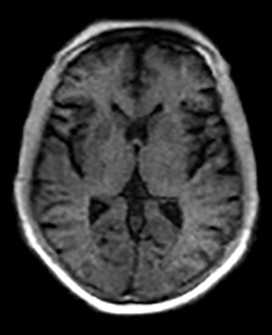

T1 (Gray/White)

T2 / Fast T2

Resolution: T2: 1.5 × 1.5 × 5 mm; Fast T2: 1.6 × 1.6 × 5 mm

Acquisition type; orientations: 3D; axial, sagittal, coronal

Kspace trajectory: Cartesian, weighted coverage

Image reconstruction: Kalman filter noise suppression, line noise suppression, T2 decay and apodization filter, advanced gridding, phase-sensitive parallel imaging reconstruction, B0 drift navigator

Post-processing: Geometric distortion correction, intensity correction, advanced denoising

Additional info: Fast T2 is approximately 60% shorter compared to T2.

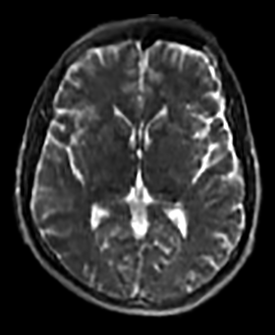

T2

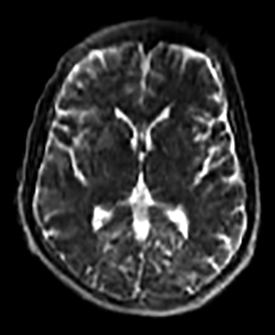

Fast T2

Fluid-Attenuated Inversion Recovery (FLAIR)

Resolution: 1.7 × 1.7 × 5 mm

Acquisition type; orientations: 3D; axial, sagittal, coronal

Kspace trajectory: Cartesian, weighted coverage

Image reconstruction: Kalman filter noise suppression, line noise suppression, T2 decay and apodization filter, advanced gridding, phase-sensitive parallel imaging reconstruction, B0 drift navigator

Post-processing: Geometric distortion correction, intensity correction, advanced denoising

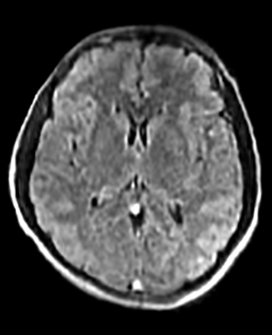

FLAIR

Diffusion-Weighted Imaging (DWI) and Apparent Diffusion Coefficient (ADC) Maps

Resolution: 2.4 × 2.4 × 6 mm

Acquisition type; orientations: 3D; axial

Associated options: ADC mapping, b-value = 900 s/mm2

Kspace trajectory: Cartesian, weighted coverage

Image reconstruction: ADC map output, Kalman filter noise suppression, line noise suppression, FISTA image reconstruction, B0 drift and motion navigator

Post-processing: Geometric distortion correction, intensity correction, advanced denoising

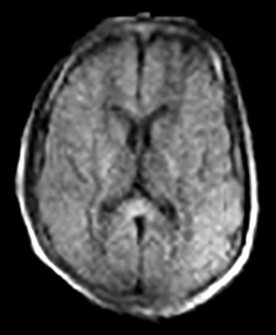

DWI
DWI+ADC
